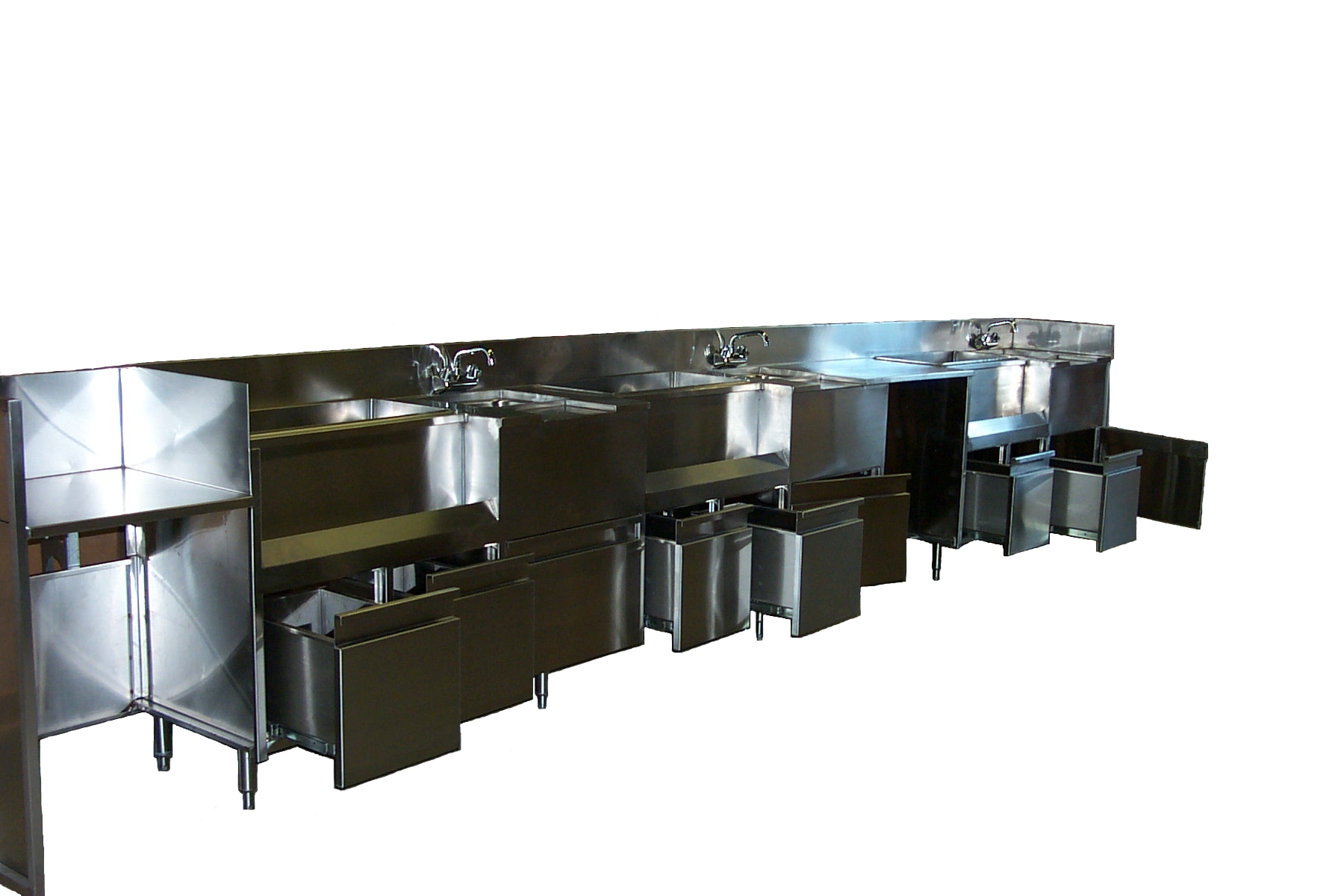

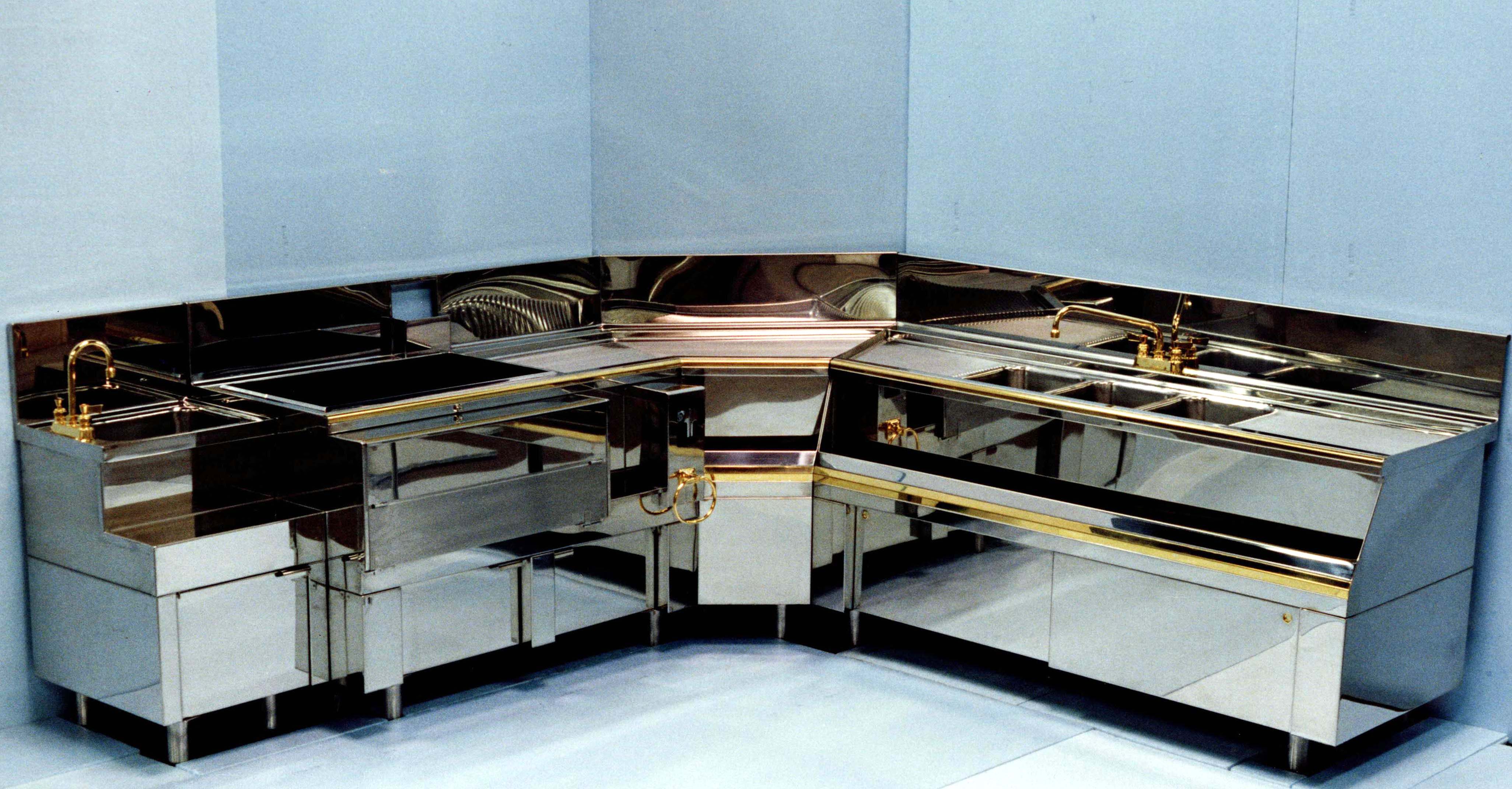

PERFECTA PF-22 and PF-19 Underbar Series

Designed and built with the user in mind, Perfection offers the most complete line of underbar equipment available today. Whether you select our Perfecta PF-22 “Consultant” Series or our Perfecta  PF-19 “Competitive” Series, you can be certain your equipment has been built with the same care and experience that go into every Perfection product.

Whatever your underbar needs, look to Perfecta by Perfection and remember…Perfection is just not our name…it is our commitment.

PERFECTA PHS-22 and PHS-19 Handsinks, and PHS-15 Wallmount Sink

SPECIFICATIONS

PERFECTA PF-22 and PF-19 Display and Storage Units

PERFECTA PF-19 Competitive Series

Unique One Piece Top

Drainboard Top

  • Fully heliarc welded one piece construction* with front rail, top working surface and backsplash die formed from one sheet of 18 gauge type 304-18-8 stainless steel with #4 finish.
  • Apron and both ends of 18 gauge type 304-18-8 stainless steel with #4 finish.
  • Corrugated areas are “pitched” to rinse tank or drain area (optional surface drain available on sections less than 18″ in length)
  • All corrugations are 3/32″ deep with three (3) corrugations to the inch.
  • Tops are reinforced with multiple 16 gauge stainless steel “U” channel.
  • All undersurfaces are mastic coated for noise and vibration dampening.

* Seems will occur at miters and on straight sections in excess of 9’8″ in length.

Rinse Tank

  • 10″ x 14″ x 9 3/4″ deep.
  • Seamless
  • One-piece, die stamped construction with 2″ radii on all vertical and horizontal corners
  • 18 Gauge type 304-18-8 stainless steel.
  • Heliarc welded, ground and polished at top.

ICE CHEST

  • (3) Three standard sizes to choose from:
    24″ (inner liner dimensions 22″ x 16″ x 10″ deep)
    30″ (inner liner dimensions 28″ x 16″ x 10″ deep)
    36″ (inner liner dimensions 34″ x 16″ x 10″ deep)
  • 1/2″ Radii on all vertical and horizontal corners
  • Mastic coated ice chest liner, fully insulated
  • Top perimeter has 3/8″ raised edge.
  • Other sizes available including 16″ deep units.
  • Sealed-in, seven-circuit cold plate available with bump fittings for inlet and outlet lines

FRAME

  • All framing members are 16 Gauge type 304-18-8 stainless steel.
  • All top and bottom edges are “L” shaped.
  • Corner support members and leg sockets are heliarc welded into place.

LEGS

  • 1 5/8″ O.D. Diameter.
  • 16 Gauge stainless steel with adjustable stainless steel bullet feet.
  • Leg sockets are constructed of 16 Gauge stainless steel with locking set screw. Heliarc welded to 16 Gauge stainless steel support channels

Series PF 19-2000, PF 19-2010, PF 19-2050 and PF 19-2060

PERFECTA PF-22 Consultant Series

UNIQUE ONE-PIECE TOP

Drainboard Top

  • Fully heliarc welded one piece construction* with front rail, top working surface and backsplash die formed from one sheet of 18 gauge type 304-18-8 stainless steel with #4 finish.
  • Apron and both ends of 18 gauge type 304-18-8 stainless steel with #4 finish.
  • Corrugated areas are “pitched” to rinse tank or drain area (optional surface drain available on sections less than 18″ in length)
  • All corrugations are 3/32″ deep with three (3) corrugations to the inch.
  • Tops are reinforced with multiple 16 gauge stainless steel “U” channel.
  • All undersurfaces are mastic coated for noise and vibration dampening.

* Seems will occur at miters and on straight sections in excess of 9’8″ in length.

Rinse Tank

  • 10″ x 14″ x 9 3/4″ deep.
  • Seamless
  • One-piece, die stamped construction with 2″ radii on all vertical and horizontal corners
  • 18 Gauge type 304-18-8 stainless steel.
  • Heliarc welded, ground and polished at top.

ICE CHEST

  • (3) Three standard sizes to choose from:
    24″ (inner liner dimensions 22″ x 16″ x 10″ deep)
    30″ (inner liner dimensions 28″ x 16″ x 10″ deep)
    36″ (inner liner dimensions 34″ x 16″ x 10″ deep)
  • 1/2″ Radii on all vertical and horizontal corners
  • Mastic coated ice chest liner, fully insulated
  • Top perimeter has 3/8″ raised edge.
  • Other sizes available including 16″ deep units.
  • Sealed-in, seven-circuit cold plate available with bump fittings for inlet and outlet lines

FRAME

  • All framing members are 16 Gauge type 304-18-8 stainless steel.
  • All top and bottom edges are “L” shaped.
  • Corner support members and leg sockets are heliarc welded into place.

LEGS

  • 1 5/8″ O.D. Diameter.
  • 16 Gauge stainless steel with adjustable stainless steel bullet feet.
  • Leg sockets are constructed of 16 Gauge stainless steel with locking set screw. Heliarc welded to 16 Gauge stainless steel support channels

Series PF 22-2000, PF 22-2010, PF 22-2050 and PF 22-2060

PERFECTA PF-22 and PF-19 Miters, Clips and Field Joints

PERFECTA PF-22 and PF-19 Miscellaneous Accessories for Workboard

PERFECTA PF-22 and PF-19 Ice Chests and Accessories

PERFECTA PF-22 Consultant Series QUICK-POUR

GENERAL SPECIFICATIONS

  • One-piece construction with front rail, top working surface and backsplash die-formed from one sheet of 18 GA. type 304 stainless steel
  • Apron & both ends of 18 GA. type 304 stainless steel
  • Corrugated areas are pitched to rinse tank or drain area
  • All undersurfaces are mastic coated
  • Mastic coated ice chest liner, fully insulated
  • Corner support members & leg socket are electrically welded into place
  • Legs are 16 GA. stainless steel with adjustable stainless steel bullet feet
  • Leg sockets are constructed of 16 GA. stainless steel with locking set screw, heliarc welded to 16 GA. stainless steel support channels

Note:

Various sizes available in 6″ increments. Minimum 12″ on drainboard to accommodate stack-all glass rack. Minimum 9″ on blender stand to accommodate 6″ x 6″ or 6″ x 9″ dumpsink.

QUICK-POUR QP-54

OPTIONS

  • Pair of bottlewell inserts #2562
  • Stainless steel condiment tray with 3 wells #2573
  • 6″ x 6″ or 6″ x 9″ dumpsink
  • Lift our strainer basket
  • Liquor or soda chase #2635
  • Ice bin divider #2520
  • Shot glass storage rack #2800
  • Sealed in cold plate (30″ ice chest) #CP
  • Locking cover for speedrail
  • Spray faucet
  • Apron mounted dry waste chute #2682 (QP-72 & QP-84 only)
  • Bottle opener & cap catcher #2686 (QPB-72 & QP-84 only)

FEATURES

  • Recessed drainboard to accommodate 10″ x 20″ stack-all glass rack
  • 30″ ice chest with S/S cover and perforated false bottom
  • Double step blender shelf with duplex outlet
  • Towel ring
  • Double speedrail
  • Glass rack storage shelf

QUICK-POUR QP-60

OPTIONS

  • Pair of bottlewell inserts #2562
  • Stainless steel condiment tray with 3 wells #2573
  • 6″ x 6″ or 6″ x 9″ dumpsink
  • Lift our strainer basket
  • Liquor or soda chase #2635
  • Ice bin divider #2520
  • Shot glass storage rack #2800
  • Sealed in cold plate (30″ ice chest) #CP
  • Locking cover for speedrail
  • Spray faucet
  • Apron mounted dry waste chute #2682 (QP-72 & QP-84 only)
  • Bottle opener & cap catcher #2686 (QPB-72 & QP-84 only)

FEATURES

  • Recessed drainboard to accommodate 10″ x 20″ stack-all glass rack
  • 36″ ice chest with S/S cover and perforated false bottom
  • Blender shelf with duplex outlet
  • Towel ring
  • Double speedrail
  • Glass rack storage shelf

QUICK-POUR QP-84

OPTIONS

  • Pair of bottlewell inserts #2562
  • Stainless steel condiment tray with 3 wells #2573
  • 6″ x 6″ or 6″ x 9″ dumpsink
  • Lift our strainer basket
  • Liquor or soda chase #2635
  • Ice bin divider #2520
  • Shot glass storage rack #2800
  • Sealed in cold plate (30″ ice chest) #CP
  • Locking cover for speedrail
  • Spray faucet
  • Apron mounted dry waste chute #2682 (QP-72 & QP-84 only)
  • Bottle opener & cap catcher #2686 (QPB-72 & QP-84 only)

FEATURES

  • Corrugation drain
  • Recessed drainboard to accommodate 10″ x 20″ stack-all glass rack
  • 30″ ice chest with S/S cover and perforated false bottom
  • Blender shelf with duplex outlet
  • Towel ring
  • Double speedrail
  • Glass rack storage shelf

QUICK-POUR QPA-72

OPTIONS

  • Pair of bottlewell inserts #2562
  • Stainless steel condiment tray with 3 wells #2573
  • 6″ x 6″ or 6″ x 9″ dumpsink
  • Lift our strainer basket
  • Liquor or soda chase #2635
  • Ice bin divider #2520
  • Shot glass storage rack #2800
  • Sealed in cold plate (30″ ice chest) #CP
  • Locking cover for speedrail
  • Spray faucet
  • Apron mounted dry waste chute #2682 (QP-72 & QP-84 only)
  • Bottle opener & cap catcher #2686 (QPB-72 & QP-84 only)

FEATURES

  • Recessed drainboard to accommodate 10″ x 20″ stack-all glass rack
  • 30″ ice chest with S/S cover and perforated false bottom
  • Blender shelf with duplex outlet
  • 15″ ice chest with S/S cover & perforated false bottom
  • Towel ring
  • Double speedrail
  • Glass rack storage shelf

QUICK-POUR QPB-72

OPTIONS

  • Pair of bottlewell inserts #2562
  • Stainless steel condiment tray with 3 wells #2573
  • 6″ x 6″ or 6″ x 9″ dumpsink
  • Lift our strainer basket
  • Liquor or soda chase #2635
  • Ice bin divider #2520
  • Shot glass storage rack #2800
  • Sealed in cold plate (30″ ice chest) #CP
  • Locking cover for speedrail
  • Spray faucet
  • Apron mounted dry waste chute #2682 (QP-72 & QP-84 only)
  • Bottle opener & cap catcher #2686 (QPB-72 & QP-84 only)

FEATURES

  • Recessed drainboard to accommodate 10″ x 20″ stack-all glass rack
  • 42″ ice chest with S/S cover and perforated false bottom
  • Blender shelf with duplex outlet
  • Towel ring
  • Double speedrail
  • Glass rack storage shelf

Locking Speedrail (Stowable)

Maximum Length = 36″ (914mm)

Locking Double Speedrail (Stowable)

Maximum Length = 36″ (914mm)
